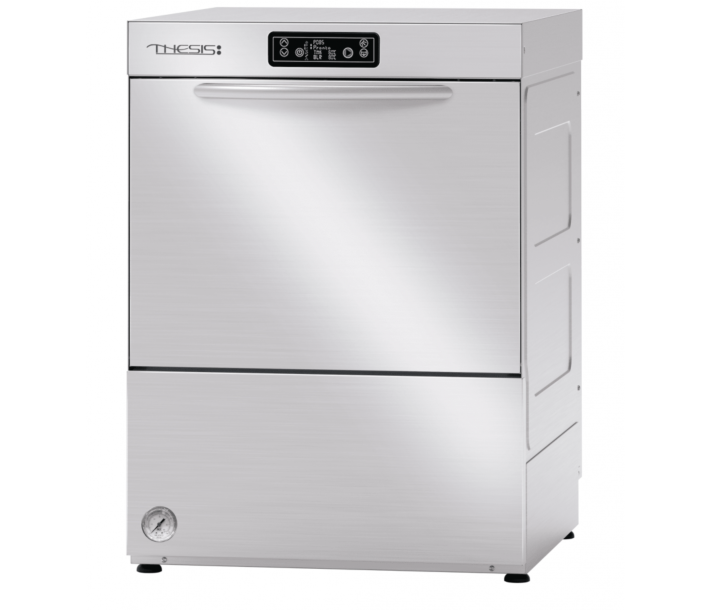

Handy Line H54E - A

Discover the versatility and efficiency of the H54E-A dishwasher, perfect for any kitchen needing to clean a variety of glassware and dishes. With its innovative design and advanced features, this dishwasher simplifies your cleaning tasks while ensuring optimal hygiene and durability. Whether you're dealing with daily dish loads or the demands of a busy kitchen, the H54E-A has got you covered.

Performance Features:

• Versatile washing for various glasses and up to 18 dishes per cycle, max Ø 350 mm
• High capacity: 40 racks/hour or 720 dishes/hour
• Optional automatic drain pump for efficient water management
• ETL and ETL Sanitation certified meets NSF/ANSI 3 hygiene standards
• Simple electronic controls with adjustable rinsing and draining settings
• Four washing cycles plus an automatic drain cycle with a color-changing Start button for status updates
• Self-diagnosis and maintenance alerts for minimal downtime
• Automatic self-cleaning cycle to prevent limescale
• Precise dosing with double peristaltic electric rinse-aid and detergent dispenser
• Durable, molded washing and rinsing arms
• Thermo-stop function for temperature-controlled washing and rinsing
• AISI 304 steel construction with front-access components for easy maintenance
• Built-in drain pump
• 4 wash cycles

Technical Features:

• Uses standard racks: 20" x 20" | 500mm x 500mm
• Door Clearance: 15.08" | 383mm height
• Wash Pump: 3/4 hp
• Tank heating element: 2.6kW, Capacity: 7 Gal (26L)
• Booster heating element: 2.5kW, Capacity: 1.9 Gal (7.3L)
• Power Requirement: 3.12kW, 208/220V, 50/60hz, 1Ph, 15A
• Hot water requirements: 0.5 GPC (2.6LPC) 125⁰F (55⁰C), will operate with cold water at reduced capacity
• Water line requirements: 0.75” (or 0.5” with 0.75” NPT terminal) hose supplied
• Water pressure requirements: 26-36 PSI
• Hot Water requirement: Ideal temperature is 50C.  55C is the MAX incoming water temperature
• Drain line: 1” (25mm) connection hose supplied
• Overall Dimensions (WDH): 23" x 31.5" x 39.5" | 680 x 800 x 1000 mm
• Net Weight: 126 lbs | 57.5 kg
